Norco

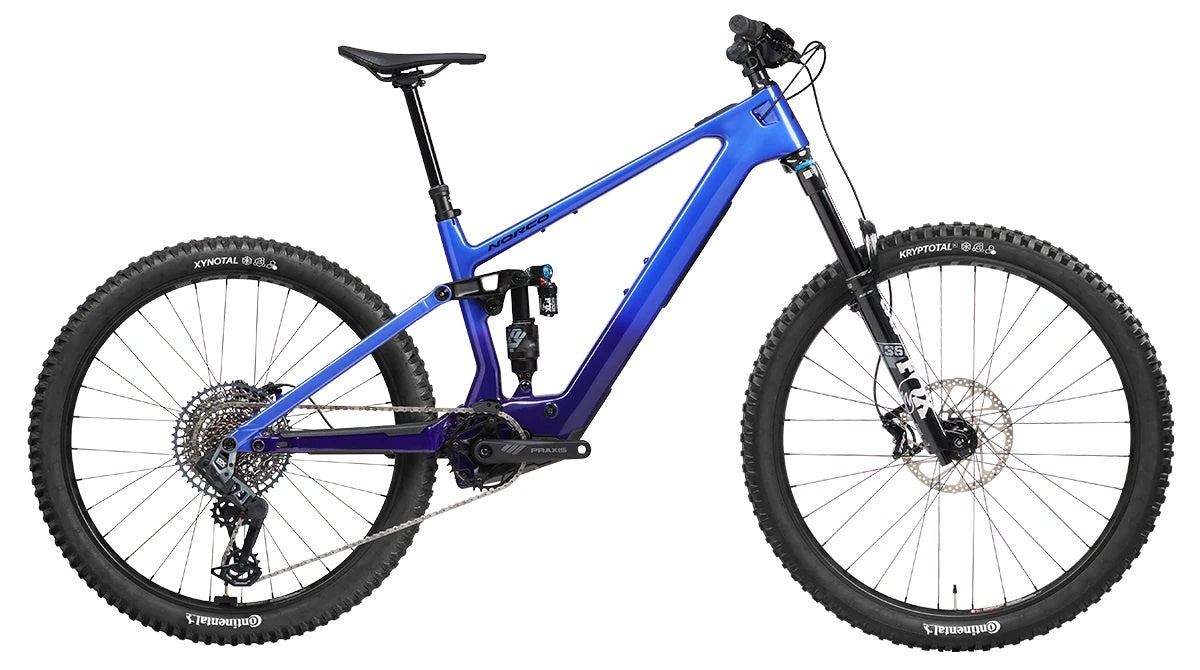

2025 Norco Fluid VLT

Name: 2025 Norco Fluid VLT
Brand: Norco
SKU: 14591
Price: 13999.0 NZD
Availability: OutOfStock

$13,999.00 NZD

Sale Sold out

Tax included.

Colour Green Purple

Size Size 2 Size 3

Product variants

Quantity

FRAME	Fluid VLT Carbon Front Triangle, Alloy SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
FORK	Fox 36 Performance Elite, 29”, 150 mm Travel
REAR SHOCK	Fox FLOAT X2 Performance Elite, 185x55mm Trunnion
REAR SHIFTER	SRAM Pod Ultimate Controller
REAR DERAILLEUR	SRAM GX Eagle AXS T-Type
CRANKSET	Praxis Alloy HD eMTB, 165mm
CASSETTE	SRAM 1275 T-Type 10-52T
CHAIN	SRAM GX Eagle T-Type
FRONT BRAKE	TRP Trail Evo, 4 Piston
FRONT BRAKE ROTOR	TRP TR203, 203mm, 2.3mm Thick
REAR BRAKE	TRP Trail Evo, 4 Piston
REAR BRAKE ROTOR	TRP TR180, 180mm, 2.3mm Thick
BRAKE LEVERS	TRP Trail Evo
HANDLEBAR	6061 DB Alloy, 800mm, 25mm Rise
STEM	Norco SL 6061 Alloy 40mm Length, 35mm Clamp
SEATPOST	TranzX YSI08FL RAD+ Travel Adjust Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5)
HEADSET	FSA No. 57 ZS, Carbon Top Cover
HEADSET SPACER	Carbon, 2x10mm, 1x5mm
SADDLE	Fizik Ridon
GRIPS	WTB Wavelength
FRONT HUB	Bear Pawls, 110x15mm Boost, 6-Bolt
REAR HUB	Bear Pawls, Impel 24T, 3-Bearing Steel Driver Body, 148x12mm Boost, 6-Bolt, XD
RIMS	WTB KOM Trail 32H, 27.5" Rear, 29" Front, 30mm ID
FRONT TIRE	Maxxis Minion DHF, 3C Max Terra EXO, 29x2.5", Folding
REAR TIRE	Maxxis Minion DHRII, 3C Max Terra EXO+, 27.5x2.4", Folding
DRIVE UNIT	Bosch Performance Line SX
BATTERY	Bosch CPT 400Wh
WEIGHT	19.9 kg (44.0 lbs)
WEIGHT SIZE	S3

Geometry

Frame Size	1 (Small)	2 (Medium)	3 (Large)	4 (X-Large)	5 (XX-Large)
Rider Height (ft.)	5'1"–5'5"	5'4"–5'8"	5'7"–5'-11"	5'10"–6'2"	6'1"–6'5"
Rider Height (cm)	155.0–165.0	162.5–172.5	170.0–180.0	178.0–188.0	185.5–195.5
Wheel Size	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"	29"/27.5"
Travel (Front/Rear)	150/140	150/140	150/140	150/140	150/140
Reach	422.5	447.5	472.5	497.5	522.5
Stack	610	619	628	637	646
Head Tube Angle	64.5	64.5	64.5	64.5	64.5
Fork Offset	44	44	44	44	44
Seat Tube Length	385	395	415	445	475
Effective Seat Tube Angle	76.50	76.75	77.00	77.25	77.50
Rear Centre	432	432	436	440	444
Bottom Bracket Drop (Front/Rear)	28/8	28/8	28/8	28/8	28/8
Bottom Bracket Height	350	350	350	350	350
Horizontal Top Tube Length	569	593	618	642	666
Wheelbase	1181	1210	1243	1277	1310
Standover Height	715	701	703	720	743
Head Tube Length	100	110	120	130	140
Trail	132	132	132	132	132
Recommended Seatpost Drop	125	150	170	200	200
Maximum Post Insertion	240	250	270	300	330
Stem Length	40	40	40	40	40
Crank Length	165	165	165	165	165
Tire Size	2.35"–2.6"	2.35"–2.6"	2.35"–2.6"	2.35"–2.6"	2.35"–2.6"
Water Bottle Compatible	1 x 620 mL	1 x 750 mL	1 x 750 mL	1 x 750 mL	1 x 750 mL
