Merida

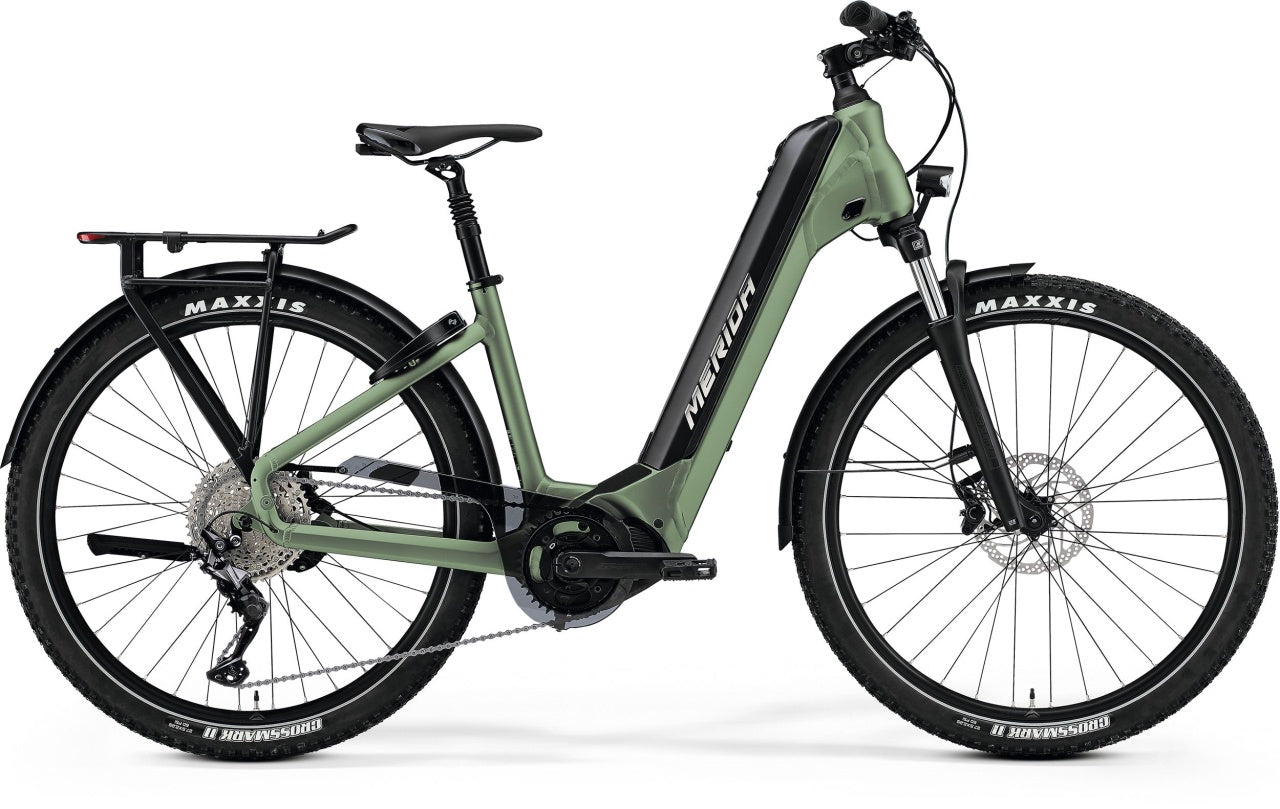

22 ESPRESSO CC 400EQ - MATT FOG GREEN(BLACK) MEDIUM

22 ESPRESSO CC 400EQ - MATT FOG GREEN(BLACK) MEDIUM

$5,499.00 NZD
$5,499.00 NZD $5,499.00 NZD
Sale Sold out
Tax included.

Specifications

01. FRAME eSPRESSO CITY LITE II, MAT aluminium, 700C WHS, 135x9 AST, internal, max. 630 Wh
02. FORK Suntour NVX30-DS-27.5, Travel: 80
03. BRAKE-FRONT Shimano MT-200, 2 piston
04. BRAKE-REAR Shimano MT-200, 2 piston
05. ROTOR-FRONT Shimano RT10, 180 mm
06. ROTOR-REAR Shimano RTEM300, 180 mm
07. CHAIN KMC e10S
08. CRANK Shimano CRE61, 38 ATC
09. CRANK LENGTH Shimano FC-E8000, 165 mm
12. SHIFTER-REAR Shimano Deore M4100-RC1 clamp band 10
14. DERAILLEUR-REAR Shimano Deore M5120
15. CASSETTE Shimano M4100, 11-46 ATC, 10 GER
16. PEDALS VP, VPE-891
17. GRIPS MERIDA EXPERT TK
18. HANDLEBAR MERIDA EXPERT TK, MAT aluminium, 660 WHB, 15 RHB
19. STEM MERIDA EXPERT CT, MAT aluminium, 31.8 DSH, adjustable
20. STEM SIZE 90 mm-XS/S/M, 110 mm-L/XL
21. HEADSET MERIDA-8252 (for the steerer 1-1/8"), No. 6: 30D
22. HUB-FRONT Shimano TX505, 100x9 WHF, 32 SPH, Centerlock
23. HUB-REAR Shimano TX505, 135x9 WHR, 36 SPH, Centerlock
25. RIMS MERIDA COMP TK, 20 IWR, MAT aluminium
26. SADDLE MERIDA EXPERT TK, V-mount
27. SEAT CLAMP MERIDA EXPERT
28. SEAT POST MERIDA EXPERT TK, 30.9 DSP, 15 SSB, 40 SST
29. SPOKES Black stainless
30. TYRE-FRONT Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
31. TYRE-REAR Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
32. EXTRAS EQ models include mudguards, lights & carrier
33. EBIKE PARTS Motor: E6100, Battery: E8036 630wh, Display: SC-E5000

Geometry

FRAME SIZE XS S M L XL
TYRE SIZES 27.5" 27.5" 27.5" 27.5" 27.5"
ST SEAT TUBE [MM] 380 430 480 530 580
TT TOP TUBE [MM] 580 595 615 635 655
CS CHAIN STAY LENGTH [MM] 470 470 470 470 470
HTA HEAD TUBE ANGLE [°] 70 70 70 70 70
STA SEAT TUBE ANGLE [°] 73.5 73.5 73.5 73.5 73.5
BD BOTTOM BRACKET DROP [MM] 65 65 65 65 65
HT HEAD TUBE [MM] 170 175 180 190 200
FL FORK LENGTH [MM] 476 476 476 476 476
R REACH [MM] 385 399 417 435 452
S STACK [MM] 656 661 666 675 685
WB WHEEL BASE [MM] 1113 1129 1149 1170 1190
SH STAND OVER HEIGHT [MM] 403 403 402 402 401
