Marin

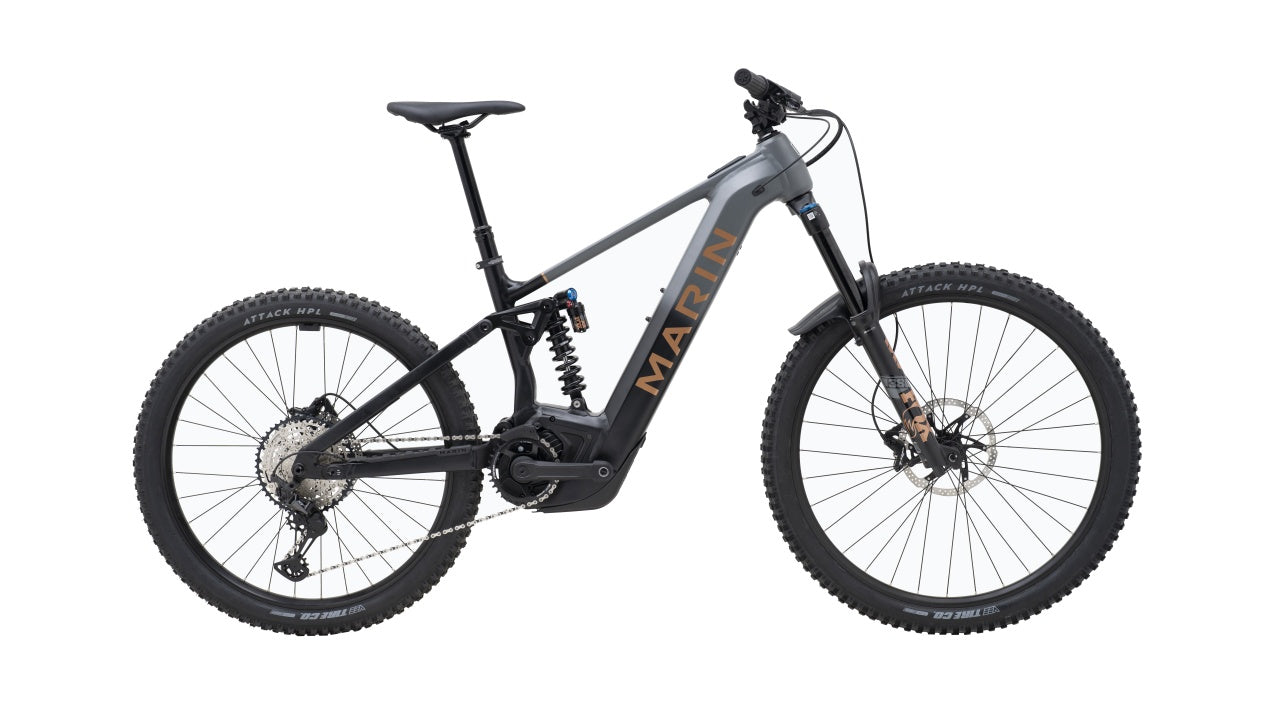

24 ALPINE TRAIL E2 29 LG - GREY/BLACK

24 ALPINE TRAIL E2 29 LG - GREY/BLACK

$10,499.00 NZD
$10,499.00 NZD
Sale Sold out
Tax included.
01. FRAME All New, Series 4 Alloy, 160mm MultiTrac Suspension LT, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
02. FRONT SUSPENSION Fox 38 Performance Elite, 170mm Travel, 29" , 110xl 5mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
03. REAR SUSPENSION Fox DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 30mmxM8 Lower Mount, S/M Spring Rate= 350Ib, L/XL Spring Rate= 450Ib
04. RIM Front: 29" Diameter, 32mm Inner Rim Width; Rear: 27.5" Diameter, 32mm Inner Rim Width, Tubeless Compatible
05. HUB REAR Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body
06. HUB FRONT Shimano FH-TC500, 11 0xl 5mm, Centerlock, 32H
07. SPOKES 14g Black Stainless Steel
08. TIRES Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5"
09. DERAILLEUR REAR Shimano XT 12-Speed, SGS
10. DERAILLEUR FRONT 0
11. SHIFT LEVER Shimano SLX 12-Speed, I-Spec EV
12. CRANKSET e*thirteen e*spec Plus Cranks, 160mm Length
13. MOTOR Bosch Performance CX, 85Nm
14. CHAIN KMC El 2S, E-Bike Specific Chain
15. CASSETTE Shimano SLX M7100 Cassette, 12-Speed, 10-51T
16. BRAKES FRONT TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm, 2.3mm Thick
17. BRAKES REAR TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm, 2.3mm Thick
18. BRAKE LEVERS TRP DH-R EVO Hydraulic
19. HANDLEBAR Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
20. STEM Marin CNC, 35mm Length, 35mm Bar Bore
21. GRIPS Marin Grizzly Lock On
22. HEADSET FSA Custom Headset, Adjustable HTA Design
23. SEATPOST TranzX, YSP39 1 x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
24. SADDLE Marin Speed Concept
25. PEDALS 0
26. BATTERY Bosch PowerTube 750 Wh
27. DISPLAY Bosch BRC3100 Systems Controller
28. SWITCH Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
29. EXTRAS e*thirteen e*Spec Chainguide
30. EXTRAS Cush Core Pro Tire Inserts, Marin Tire Sealant 300ml Bottle

Geometry

  M L XL
STACK 633.51 642.46 646.93
REACH 460 490 520
HEADTUBE ANGLE 63.5° 63.5° 63.5°
HEADTUBE LENGTH 115 125 130
TOPTUBE EFFECTIVE 591.33 626.52 659.24
SEATTUBE ANGLE 79° 78.8° 78.6°
SEATTUBE LENGTH 410 420 430
BB HEIGHT 352 352 352
BB DROP (REAR/FRONT) 7/24 7/24 7/24
CHAINSTAY 435 435 435
WHEELBASE 1248.12 1282.57 1314.8
STANDOVER HEIGHT 712.81 721.75 732.94
FORK OFFSET 44 44 44
